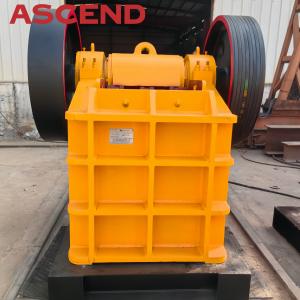

PE150×250 Copper Dolomite Diesel Powered Jaw Crusher For Mining Plant
Product Description
Jaw crushers can be widely used in quarry, metallurgy, construction, cement, chemical industry, and other industries. In quarries, it is usually used to crush stone, limestone, granite, marble, and other ores; in metallurgy, construction, cement, and other industries, it is used to crush materials with high hardness, such as coal ash, limestone, iron ore wait.
Features
1. High crushing ratio.
2. Discharging mouth wide adjustment range, can meet the requirement of different users.
3. It is well suit for running in very poor working environment.
4. High capacity, even particle size, low noise.
5. Simple structure.
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
How to Work
The working principle of the jaw crushers is very simple. Jaw crusher are engineered to deliver maximum productivity at the lowest operating costs.Powered by a diesel or electricity motor, the jaw crusher brakes materials in a crushing chamber. The materials are pushed inside the chamber from the top opening and when crushed they are released through the bottom opening.
Detailed Images
Spare Parts
Specifications
| Model | Feed openning size(mm) | Max feeding size(mm) | Discharge range(mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| PE150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
| PE250x400 | 250x400 | 210 | 20-60 | 10-20 | 15 | 2.8 |
| PE400x600 | 400x600 | 340 | 40-100 | 30-50 | 30 | 7 |
| PE500x750 | 500x750 | 425 | 50-180 | 35-80 | 55 | 12 |
| PE600x900 | 600x900 | 500 | 50-180 | 80-150 | 75 | 17 |
| PE750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 90 | 31 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 220-350 | 160 | 52 |
| PE1200x1500 | 1200x1500 | 1020 | 150-350 | 400-800 | 220 | 100 |
| PE150x750 | 150x750 | 120 | 18-48 | 10-25 | 15 | 3.8 |
| PE250x750 | 250x750 | 210 | 15-60 | 15-35 | 30 | 6.5 |
| PE250x1000 | 250x1000 | 210 | 15-60 | 16-52 | 37 | 7 |
| PE250x1200 | 250x1200 | 210 | 15-60 | 20-60 | 45 | 9.7 |
Packing&Delivery
Working Sites
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
